In the rapidly evolving landscape of software engineering, the gap between initial ideation and final documentation often leads to information silos. Traditional modeling tools focus heavily on the “drawing” phase, leaving the “thinking” and “collaborating” phases disconnected. Visual Paradigm addresses this fragmentation by introducing a comprehensive ecosystem where AI acts as the central nervous system connecting creation, refinement, and delivery.
This tutorial explores the architectural logic of the Visual Paradigm AI Ecosystem. We will break down how this platform unifies four critical pillars—Ideation, Modeling, Collaboration, and Documentation—into a single, cohesive workflow.

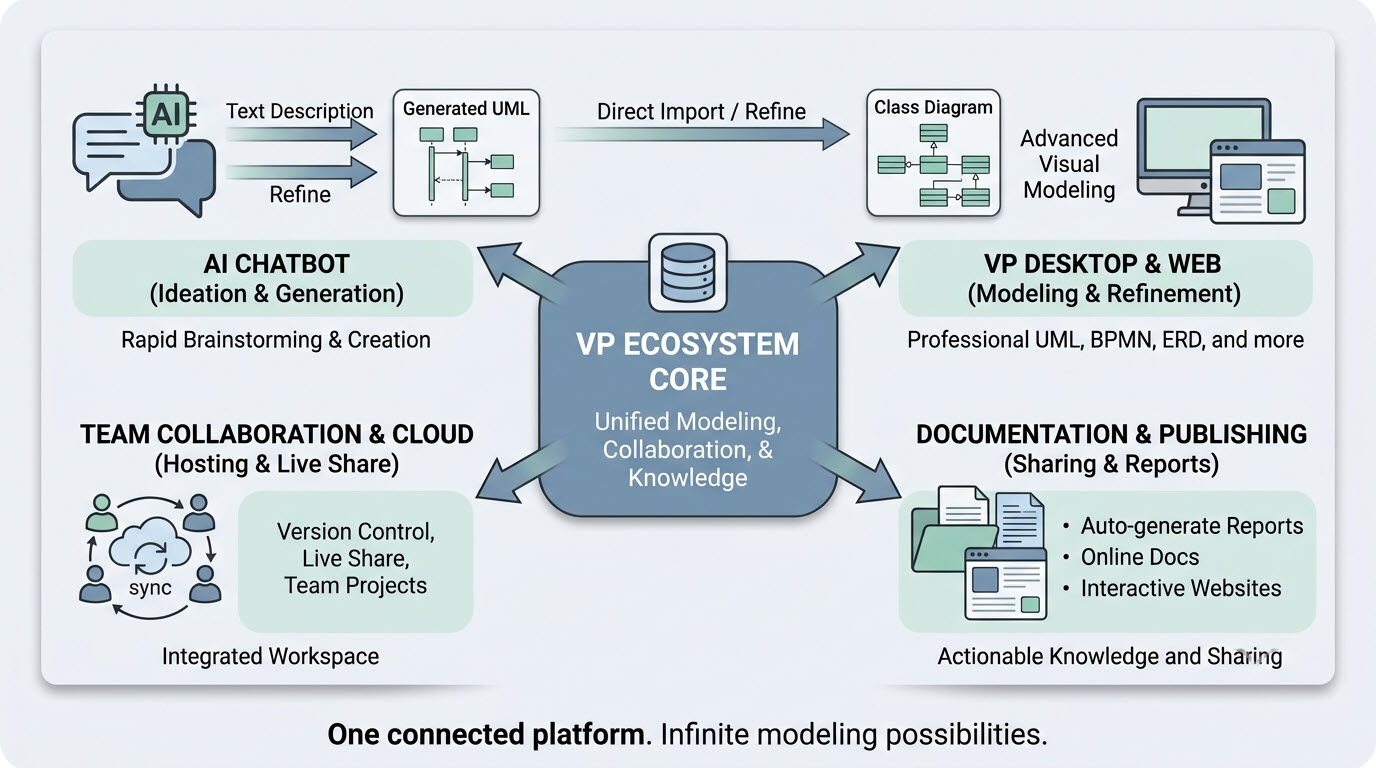

The Core: Unified Modeling & Knowledge
At the heart of this architecture lies the VP Ecosystem Core. Unlike standalone tools that operate in isolation, this core functions as a centralized repository for Unified Modeling, Collaboration, and Knowledge. It is designed to handle the complexity of enterprise-grade development, supporting standard notation systems like UML (Unified Modeling Language), BPMN (Business Process Model and Notation), and ERD (Entity Relationship Diagrams) simultaneously.
The core serves as the data exchange layer. Whether a user starts with a rough text prompt or a complex class structure, the core ensures that the underlying data remains consistent and accessible across all modules of the platform.
1. Ideation & Generation: The AI Chatbot
The workflow begins at the AI Chatbot module, which transforms natural language into visual models. This represents the “Rapid Brainstorming & Creation” phase.
Traditionally, creating a UML sequence diagram required manual drag-and-drop operations. In this ecosystem, the user inputs a Text Description of the desired logic. The AI processes this input, generating a Generated UML diagram. However, the process doesn’t stop at generation. The diagram can be immediately Refined through conversational prompts, allowing the developer to iterate on the logic without leaving the chat interface.
' Example of AI-assisted logic flow
@startuml
skinparam sequenceMessageAlign center
actor User
participant "AI Chatbot" as AI
participant "Core Engine" as Core
User -> AI: "Create a login sequence"
AI -> Core: Generate Diagram (Text-to-Model)
Core --> AI: Return UML
AI --> User: Display Generated UML
User -> AI: "Refine: Add 2FA step"
AI -> Core: Update Model
Core --> User: Updated Diagram
@enduml
2. Modeling & Refinement: Desktop & Web
Once an idea is generated, it often requires professional-grade manipulation. This is where the VP Desktop & Web environment takes over. This module handles “Advanced Visual Modeling.”
The ecosystem supports a seamless flow from the chatbot to the desktop environment. Users can perform a Direct Import / Refine action. This bridges the gap between the AI’s rough draft and the architect’s polished design. Here, users can utilize the full power of professional notation standards, including:
- Class Diagrams: For defining object-oriented structures.
- BPMN: For complex business process flows.
- ERD: For database schema design.
This module ensures that the model is not just a static image, but a robust, editable model that adheres to industry standards.
3. Team Collaboration & Cloud
Software development is rarely a solitary endeavor. The Team Collaboration & Cloud module addresses the need for an “Integrated Workspace.” It features mechanisms for “Hosting & Live Share,” ensuring that all stakeholders are working from the “Single Source of Truth.”
Key capabilities include:
- Version Control: Tracking changes over time to revert to previous states if necessary.
- Live Share: Real-time synchronization allowing multiple users to view or edit models simultaneously.
- Team Projects: Organized structures to manage dependencies across different project areas.
4. Documentation & Publishing
The final stage of the lifecycle is transforming the model into actionable knowledge. The Documentation & Publishing module automates the “Sharing & Reports” process. Instead of manually copying diagrams into Word or PowerPoint documents, the platform automatically generates:
- Auto-generate Reports: Comprehensive technical specifications derived directly from the model data.
- Online Docs: Interactive documentation portals for stakeholders.
- Interactive Websites: Exporting models into web formats for easy viewing.
Conclusion: One Connected Platform
The Visual Paradigm AI Ecosystem represents a shift from “diagramming tools” to “modeling platforms.” By integrating AI generation with professional refinement, cloud collaboration, and automated documentation, it creates a continuous loop of development. This architecture ensures that the model created in the chatbot is the exact same model used for documentation, eliminating data loss and maintaining consistency from the first idea to the final release.
